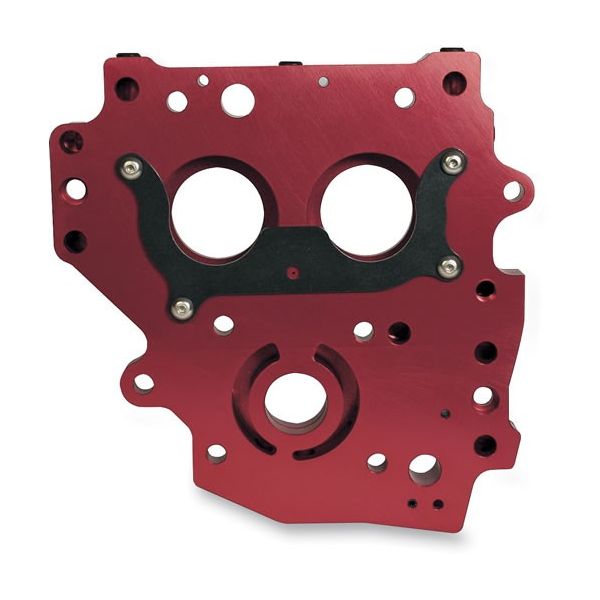

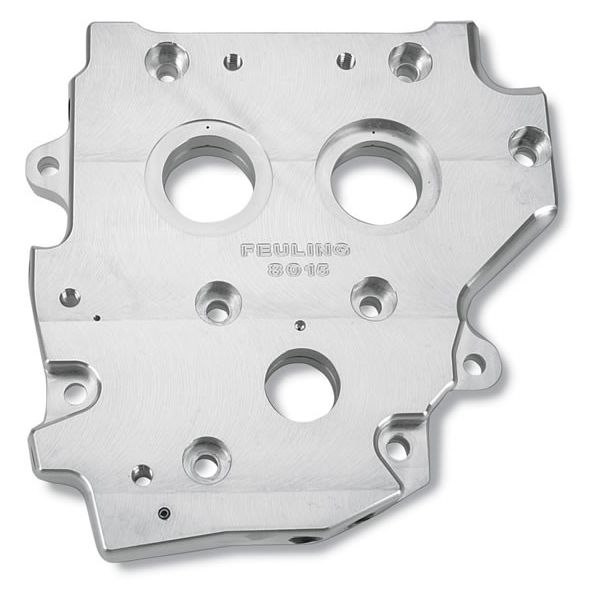

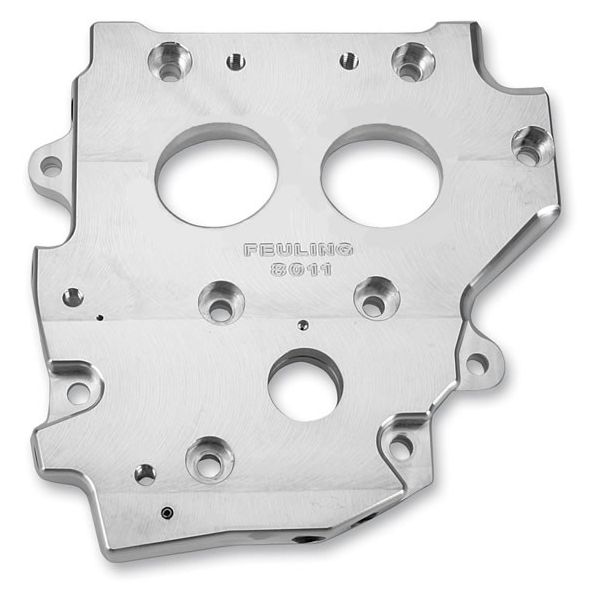

HIGH FLOWCAMSUPPORT PLATES

• Feuling® HIGH FLOW camplates for T/C® engines increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil port holes throughout the camplate to the port holes in the engine case increasing engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings resulting in 25-35 degree cooler engine temperatures
• Made from 7075 billet aluminum which 50% harder and stronger than the factory, SE® and other aftermarket camplates. The 7075 increases the strength and hardness of the camplate, holding tighter tolerances under temperature eliminating flexing and the need for bronze bushings as 7075 material has excellent bearing like properties
• Feuling® camplates are blue printed and matched to the Feuling® oil pumps, which allow the Twin Cam® engine to take full advantage of the increased volume from the high flow oil pumps resulting in cooler quieter engine operation
• Tighter cam bearing bore tolerance for improved press fit
• Camplates are pressure tested & pressure relief valve and spring are pre-set and designed for the increased volume and pressure, eliminating the need to stretch the spring or use a shim
• When matched with the Feuling® Race Series Oil Pump rear wheel power gains of 3 Horsepower and 4 ft/lbs of Torque are achieved
• For use ONLY with the Feuling® oil pumps
• Bolts into stock location
• CAM PLATE PART #0920-0006 includes military spec hard anodized, bearing retainer plate and hardware; use Feuling oil pump PART #s 0932-0018 and 0932-0020
• CAM PLATE PART #0925-0109 includes milita
• cold start up protection and increased cam journal lubrication and added oil pressure feed holes to front and back of cam journals to prevent excessive thrusting wear; uses Feuling® oil pump PART #s 0932-0023 and 0932-0026
• CONVERSION CAM PLATE PART Part # 0925-0440 for T/C® 99 -06, except 06 Dyna – has the original style 99 –06 Twin Cam® cam bearing bores for use with the press in bearings. This camplate is designed to use the new style 07–13 Factory hydraulic chain tensioner system with the original 99-06 Twin Cam® style camshafts. Great for those who have already upgraded their early style engine and like their existing camshafts. Camplate includes bearing retainer plate and hardware. Requires the purchase of ‘factory’ hydraulic chain drive tensioners. For use ONLY with FEULING® oil pumps PART#s 0932-0023 & 0932-0026
• Made in the U.S.A.

NOTE: For use ONLY with Feuling® oil pumps only; see page ???.

 SUG. RETAIL

CAMPLATES

0925-0110  For gear or chain drive cams in 06 Dyna and all 07-13 Twin Cam motors
0920-0006  For gear drive cams in 99-06 Twin Cam motors (except 06 Dyna)
0925-0109  For chain drive cams in 99-06 Twin Cam motors (except 06 Dyna)

CONVERSIONCAMPLATE

0925-0440  <For chain drive cams in 99-06 Twin Cam motors (except 06 Dyna)

Footnotes:

1. Block off plate PART #0932-0036 required when using gear drive cams.
2. Includes tensioner pins and guide hardware.
3. Requires purchase of "factory" hydraulic chain drive system (tensioners, chains, sprockets and hardware).
