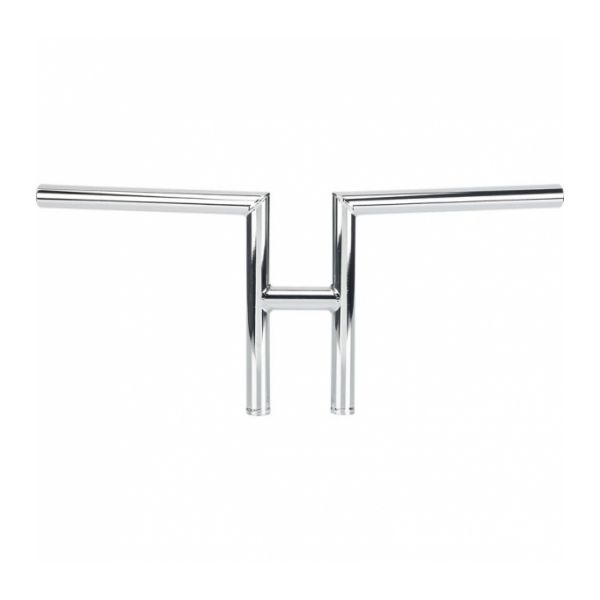

H-bar Handlebars


These bars look great on FXR’s, Sportsters, rigid Triumph customs or any other custom with hydraulic forks

More details

Ask a question (0)

Construction: 1-inch O.D. x 0.120” wall seamless 4130 chromoly tubing. All bends are created with internal mandrels on a CNC bender to reduce flat spots in the radiuses, and all welded joints are precision mitered and TIG welded. The threaded bungs on the bottom of H-Bars accept 1/2” x 13 t.p.i. hardware. For exact handlebar measurements, please click the Specifications icon in the photo album. Available in two styles: Smooth for aftermarket hand controls or custom applications, and Dimpled for stock Harley-Davidson switches and levers.

Fitment: These bars are designed to fit stock Harley-Davidson triple trees with removable handlebar risers, or their aftermarket equivalent. If the riser-mounting holes in your fork’s top tree are not 3.5 inches (89mm) wide center to center, Biltwell H-Bars will not fit. If the holes for riser hardware (either rubber isolator or solid mount type) in your top tree are not 1/2” (13mm), H-Bars will not fit. Depending on the height of the handlebars you’re trying to replace, cable and wire length may be an issue—if you’re not confident your ability to install bars, please consult a professional.

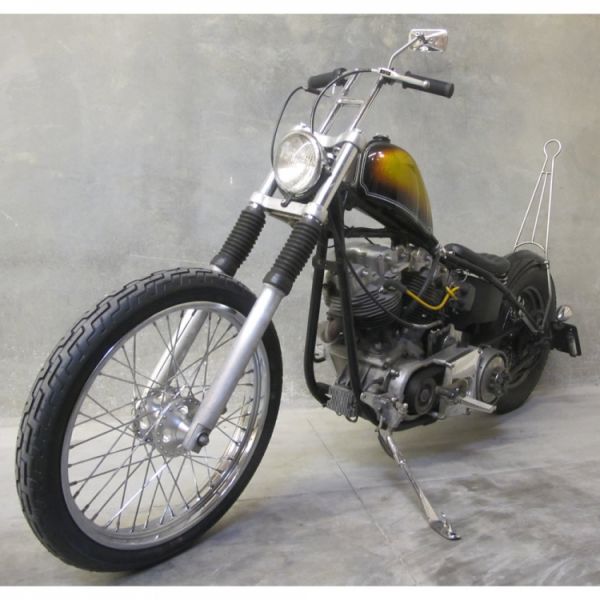

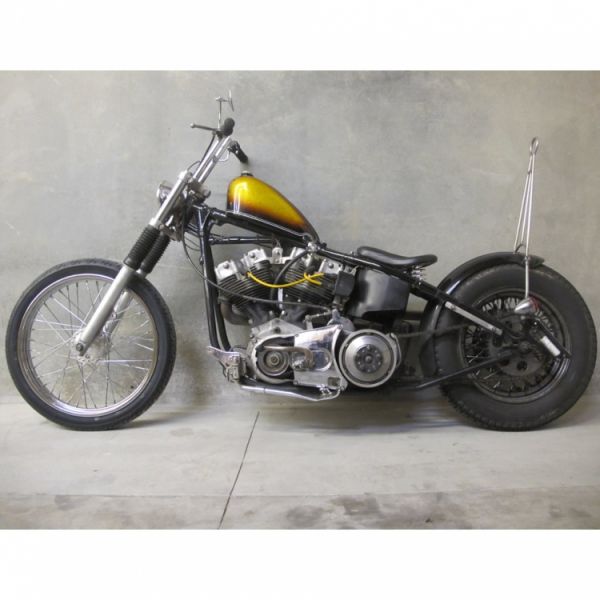

These bars look great on: FXR’s, Sportsters, rigid Triumph customs or any other custom with hydraulic forks (Narrow Glide preferred, but we’ve seen H-Bars on Wide Glide hydraulic forks that looked great, too).

PART#                DESCRIPTION
HB-HBD-01-BK    Dimpled Black

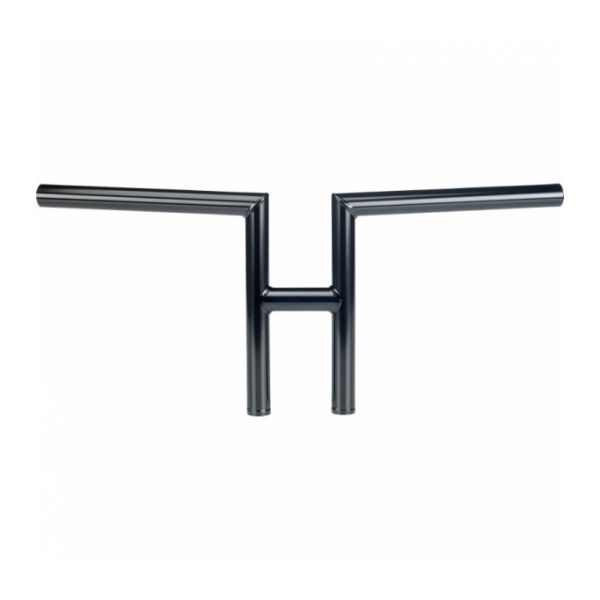

HB-HBN-01-BK    Non-dimpled Black
HB-HBD-01-CP    Dimpled Chrome

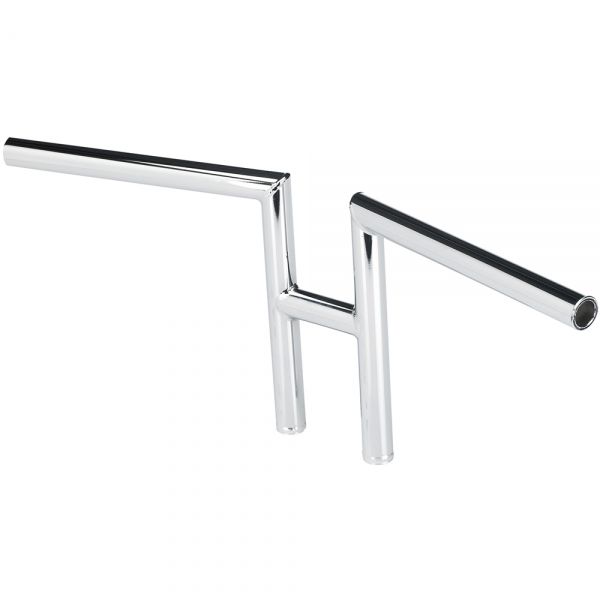

HB-HBN-01-CP    Non-dimpled Chrome

  • Product Name:H-bar Handlebars
  • Product Reference: HB-HBD-01-BK
  • By Biltwell
  • Price: US$
  • Product Width: 0.00 in
  • Product Height: 0.00 in
  • Product Depth: 0.00 in
  • Product Weight: 6.00 lbs
  • Description: These bars look great on FXR’s, Sportsters, rigid Triumph customs or any other custom with hydraulic forks
