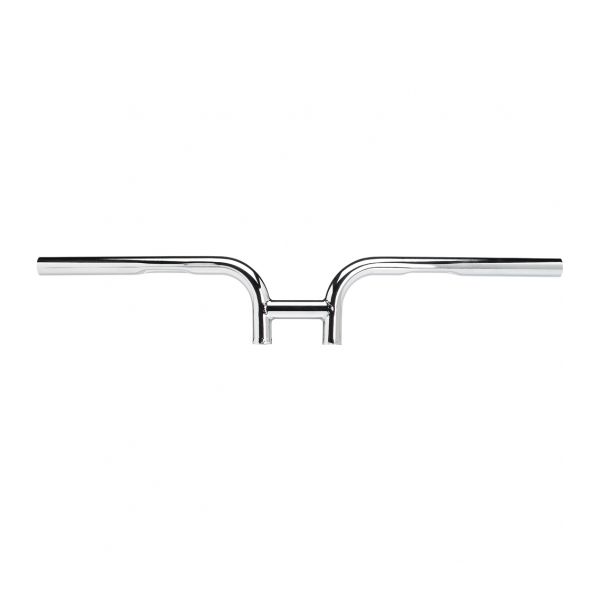

Low Drag Handlebars


These bars look great on Sportsters, rigid Triumph customs or any custom with hydraulic forks and a stock neck angle

More details

Ask a question (0)

Construction: 1-inch O.D. x 0.120” wall seamless 4130 chromoly tubing. All bends are created with internal mandrels on a CNC bender to reduce flat spots in the radiuses, and all welded joints are precision mitered and TIG welded. The threaded bungs on the bottom of Low Drag Bars accept 1/2” x 13 t.p.i. hardware. For exact handlebar measurements, please click the Specifications icon in the photo album. Available in two styles: Smooth for aftermarket hand controls or custom applications, and Dimpled for stock Harley-Davidson switches and levers.

Fitment: These bars are designed to fit stock Harley-Davidson triple trees with removable handlebar risers, or their aftermarket equivalent. If the riser-mounting holes in your fork’s top tree are not 3.5 inches (89mm) wide center to center, Biltwell Low Drag bars will not fit. If the holes for riser hardware (either rubber isolator or solid mount type) in your top tree are not 1/2” (13mm), Low Drag bars will not fit. Because our Low Drag bar’s height is similar to stock handlebars, cable and wiring probably won’t require modification. If you’re not sure, please consult a professional.

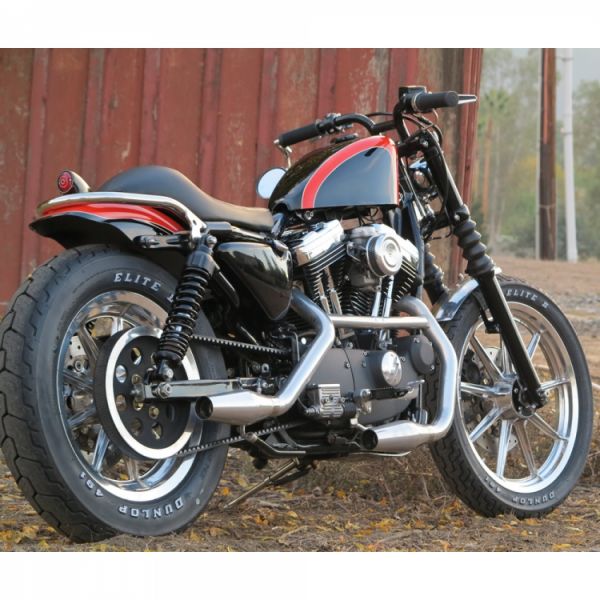

These bars look great on: Sportsters, rigid Triumph customs or any custom with hydraulic forks and a stock neck angle. Because they have a flat bend, low rise and zero upsweep, we don’t recommend Low Drag bars on motorcycles with steep neck angles, stretched backbones or extended forks.

PART#               DESCRIPTION
HB-LDD-01-BK  Dimpled Black
HB-LDN-01-BK  Non-dimpled Black
HB-LDD-01-CP  Dimpled Chrome
HB-LDN-01-CP  Non-dimpled Chrome

  • Product Name:Low Drag Handlebars
  • Product Reference: HB-LDD-01-BK
  • By Biltwell
  • Price: US$
  • Product Width: 0.00 in
  • Product Height: 0.00 in
  • Product Depth: 0.00 in
  • Product Weight: 6.00 lbs
  • Description: These bars look great on Sportsters, rigid Triumph customs or any custom with hydraulic forks and a stock neck angle
