Handlebars, Controls & MirrorsPREASSEMBLED 11/4" APE HANGER HANDLEBAR KITS Maximize - Save time and money by getting bars, hand controls, switches and grips already prewired and preassembled ready to mount

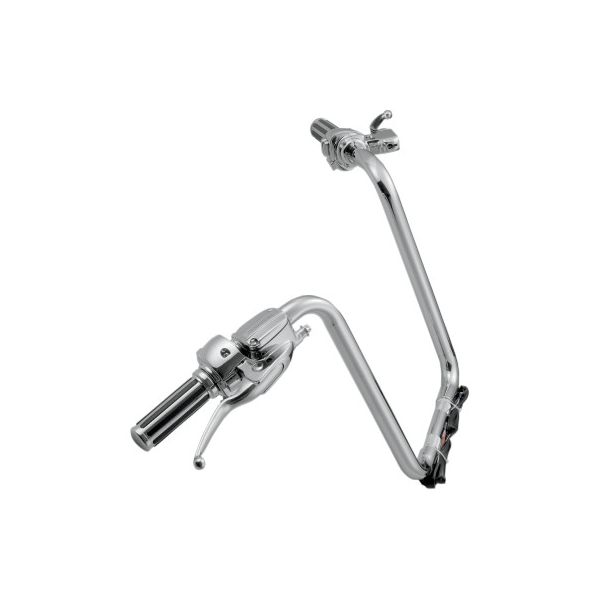

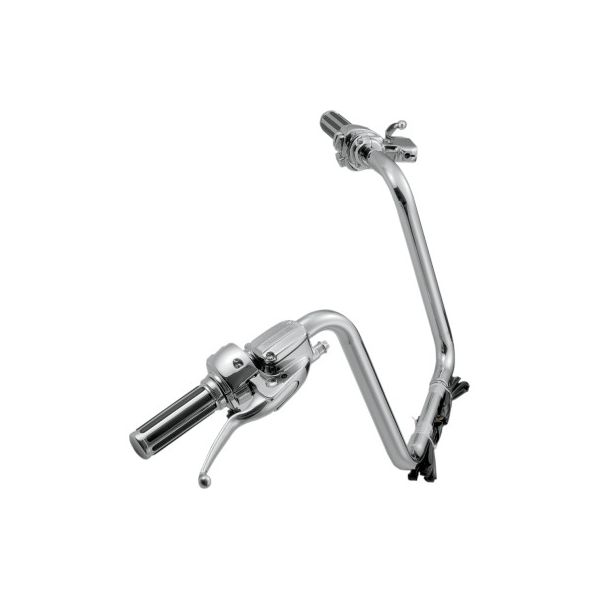

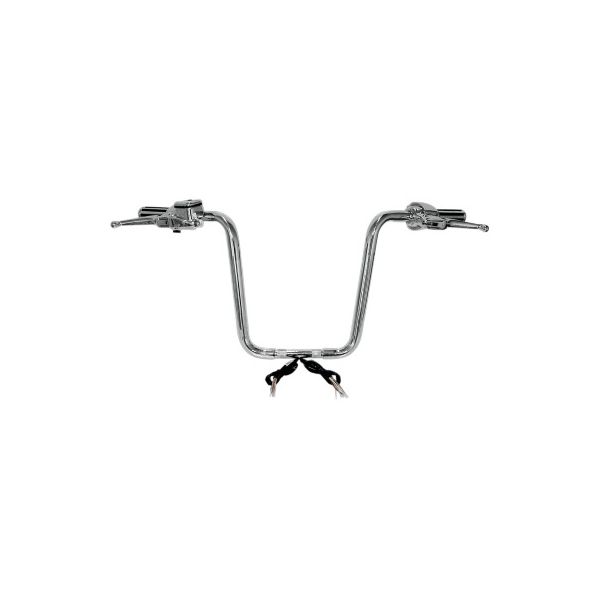

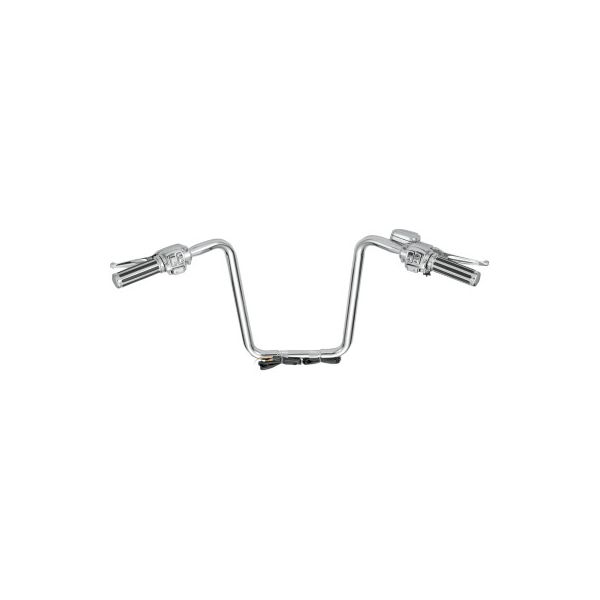

- 11/4" swedged smooth handlebars made of heavy-duty .120 thick wall tubing
- Mounting area is stepped down to 1" diameter and knurled to accommodate most risers (31/2" on-center knurling)
- Ready to install; fully assembled with 60" long internal wiring

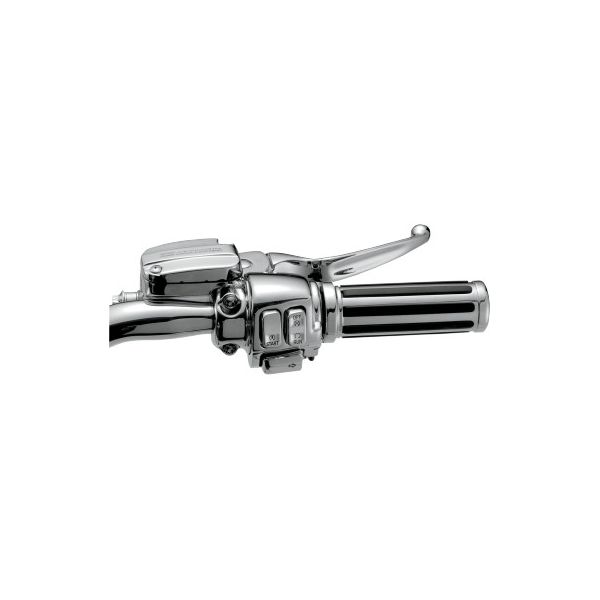

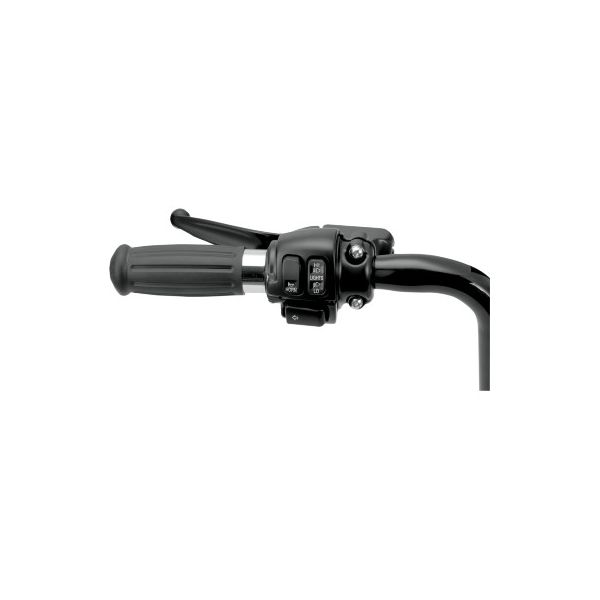

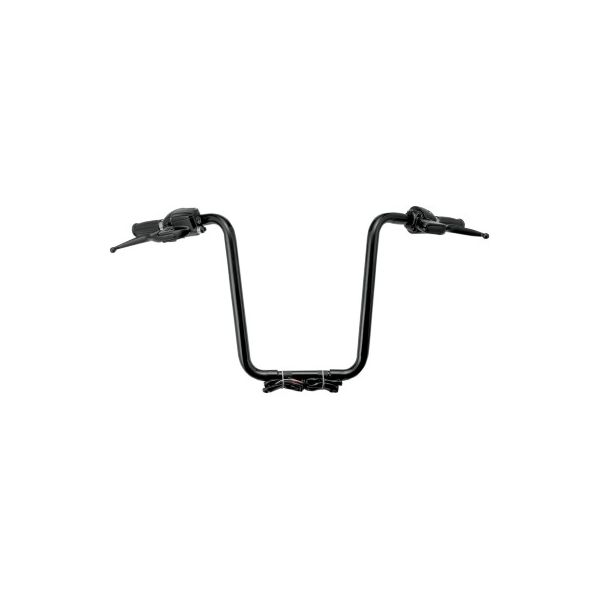

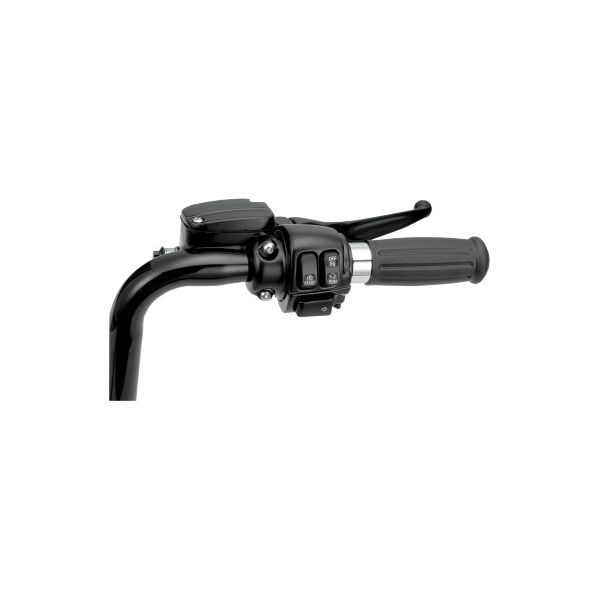

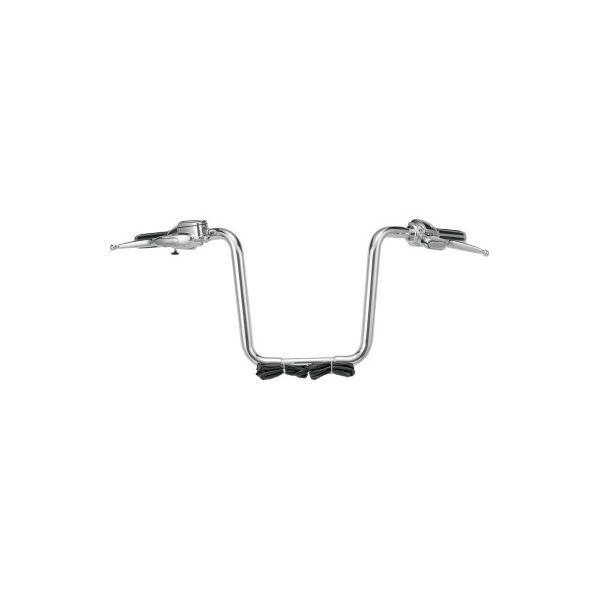

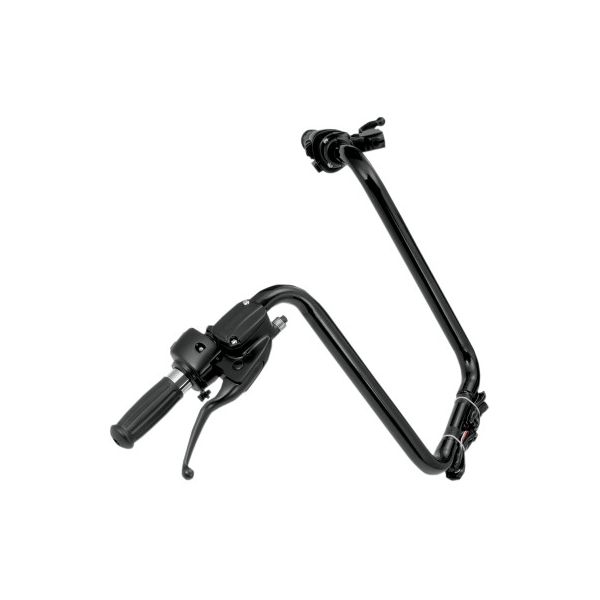

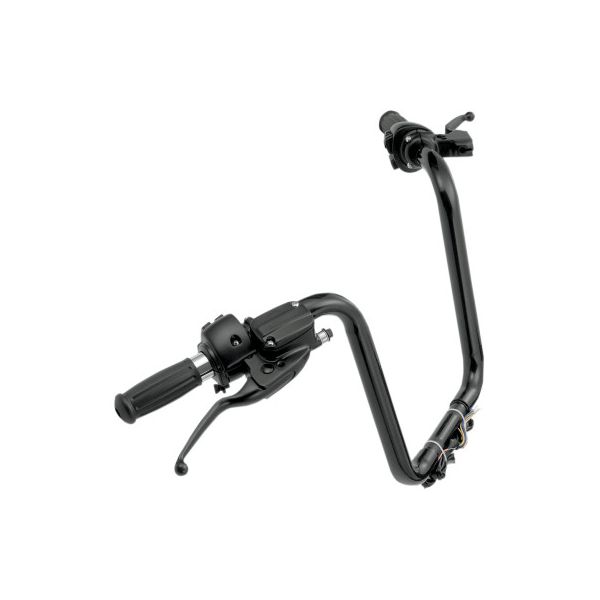

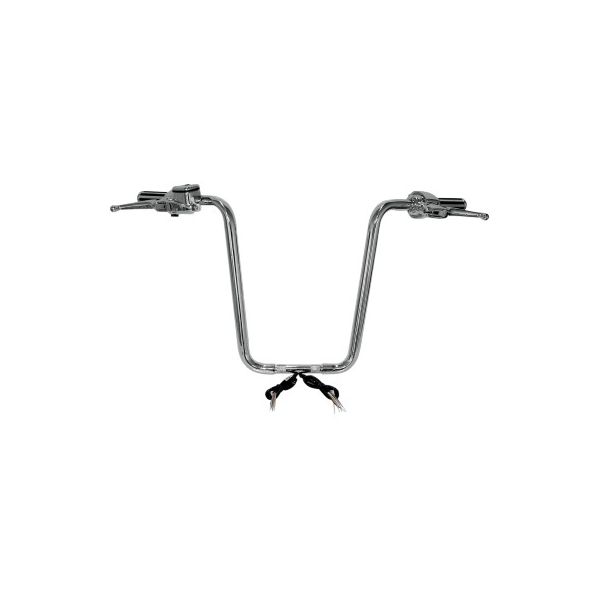

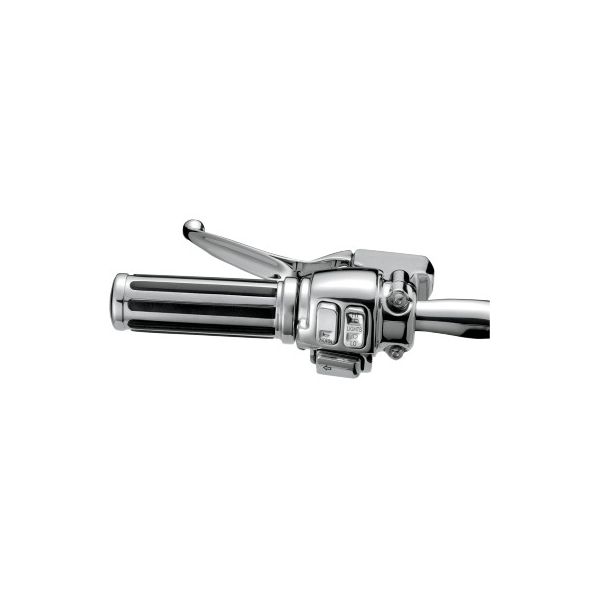

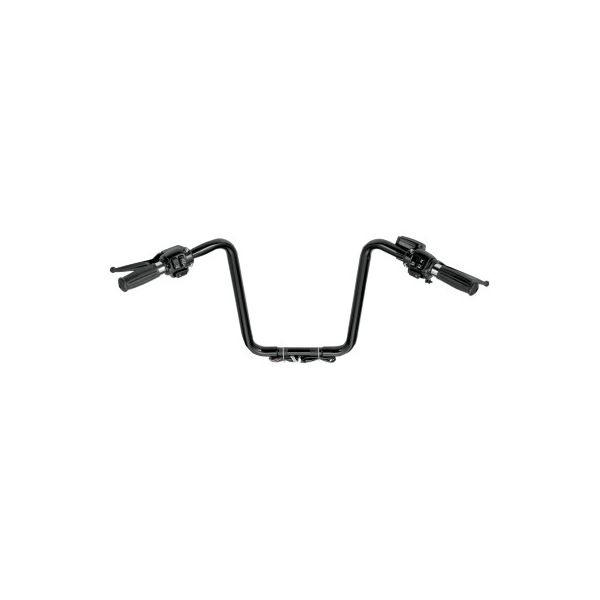

- Chrome bars have chrome switches/housings and chrome ribbed grips; black bars have black switches/housings and black grips
- Choose from 14" or 17" high bars with either 9/16" bore master cylinder for Single-Disc application or 11/16" bore master cylinder for Dual-Disc application
- Notched for Throttle By Wire (Electronic Throttle Control) applications
NOTE: Not available for hydraulic clutch application.
NOTE: Will not work on FLHT/FLHX models.
PART# DESCRIPTION
0601-1572 HANDLEBAR W/CTRL 14 APE S
0601-1573 HANDLEBAR W/CTRL 14 APE D
0601-1574 HANDLEBAR W/CTRL 17 APE S
0601-1575 HANDLEBAR W/CTRL 17 APE D
0601-1826 HANDLEBAR W/CTRL 14 BK S
0601-1827 HANDLEBAR W/CTRL 14 BK D
0601-1828 HANDLEBAR W/CTRL 17 BK S
0601-1829 HANDLEBAR W/CTRL 17 BK D
- Product Name:PREASSEMBLED 11/4" APE HANGER HANDLEBAR KITS
- Product Reference: 0601-1572
- By Paughco
- Price: US$
- Product Width: 0.00 in
- Product Height: 0.00 in
- Product Depth: 0.00 in
- Product Weight: 13.60 lbs
- Description: Save time and money by getting bars, hand controls, switches and grips already prewired and preassembled ready to mount
